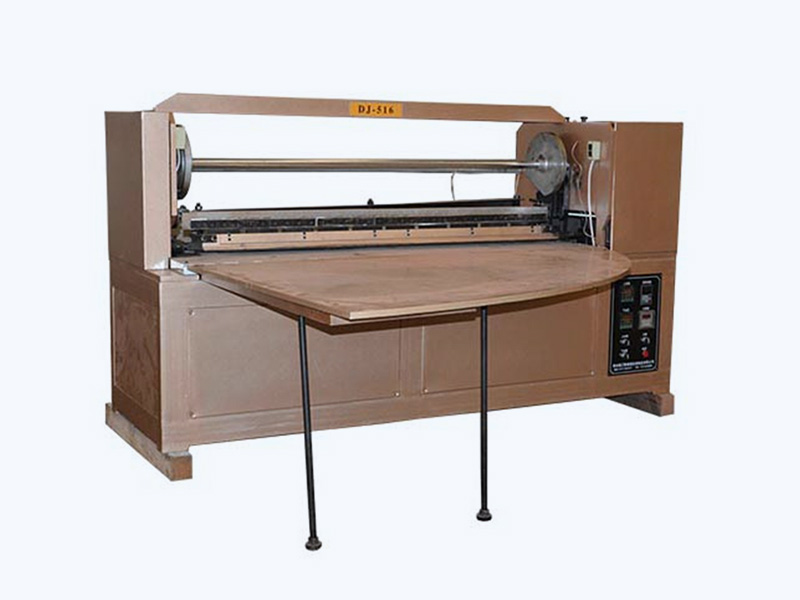

JP-516 Sunray Pleating Machine

Function

This machine is specially designed and manufactured for pleating and fixing shirt. After process, the finished flared shirt appears radiating shape, having strong in three-dimensional effect, artistic and in good taste. The mechanical properties of this machine are constant. The operation is convenient. The size of pleats can be adjusted. the size can be changed from 5mm to 25mm. It is a new and sole style pleat machine in China.

Technical parameter

Mould

ZJ-516

Power Source

380V/220V 50-60HZ

Heater Power

9.6KW

Motor Power

1.1KW

Maximum Pleating Width

1600MM

Maximum Pleating Speed

100 pleats/minute

Boundary Dimension

1900*1000*1300MM (3270*2100*1300MM)

Weight

900KG
