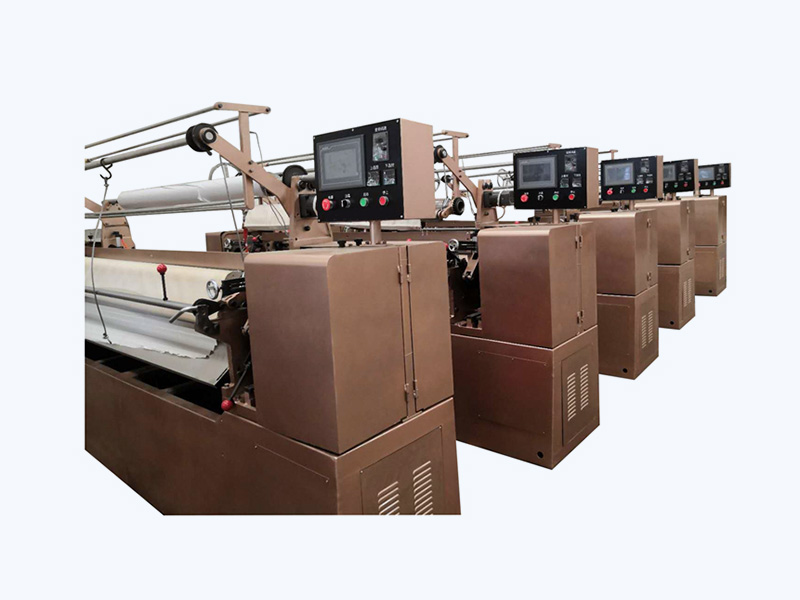

JP-217D digital pleating machine

Function
This pleating machine can be used for processing all kinds of chemical fiber and blended fabrics, PVC, PU, cow leather, and pigskin. This machine has special design, good stereoscopic effect and excellent pattern,and It has lots of patterns for choice, such as bamboo leaf pleating, straight line pleating, wave pleating etc. and such pleating designs’ combination. The bottom of the pleat is from 0.2cm to 2cm, and the surface of the pleat is from 0.3cm to 3.5cm. The fabrics after pleating can be made various types of clothing and ornaments, such as pajamas, shirts, children’s garment, and lampshade.
Technical parameter
Mould | ZJ-217D |
Power Source | 380V/220V 50-60HZ |
Heater Power | 9KW |
Motor Power | 1.2KW |
Maximum Pleating Width | 1700MM |
Maximum Pleating Speed | 85 pleats/minute |
Boundary Dimension | 3200*1650*1750MM |
Weight | 1170KG |
