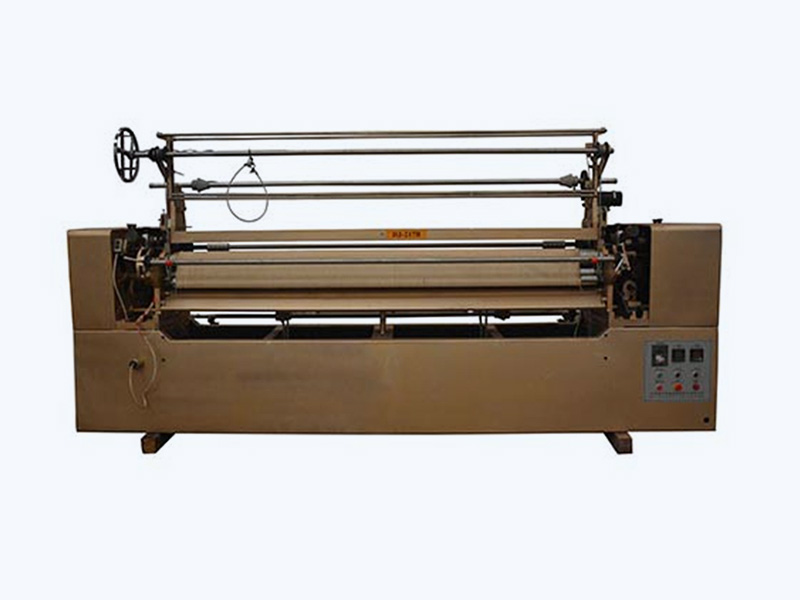

JP-217 multi-functional pleating machine

Function

This pleating machine can be used for processing all kinds of chemical fiber and blended fabrics, PVC, PU, cow leather, and pigskin. This machine has special design, good  stereoscopic effect and excellent pattern,and It has lots of patterns for choice, such as bamboo leaf pleating, straight line pleating, wave pleating etc. and such pleating designs’ combination.  The bottom of the pleat is from 0.2cm to 2cm, and the surface of the pleat is from 0.3cm to 3.5cm. The fabrics after pleating can be made various types of clothing and ornaments, such as pajamas, shirts, children’s garment, and lampshade.

Technical parameter

Mould

ZJ-217

Power Source

380V/220V 50-60HZ

Heater Power

9KW

Motor Power

1.2KW

Maximum Pleating Width

1700MM

Maximum Pleating Speed

80 pleats/minute

Boundary Dimension

3200*1650*1750MM

Weight

1170KG
