automatic inner earloop mask production line(1+1)

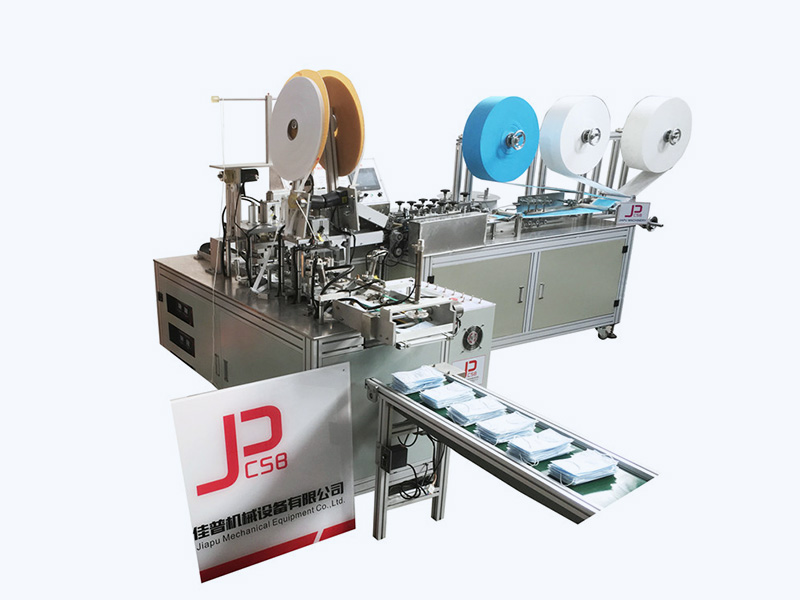

Automatic inner ear loop mask production line (1+1)

Machine Introduction:

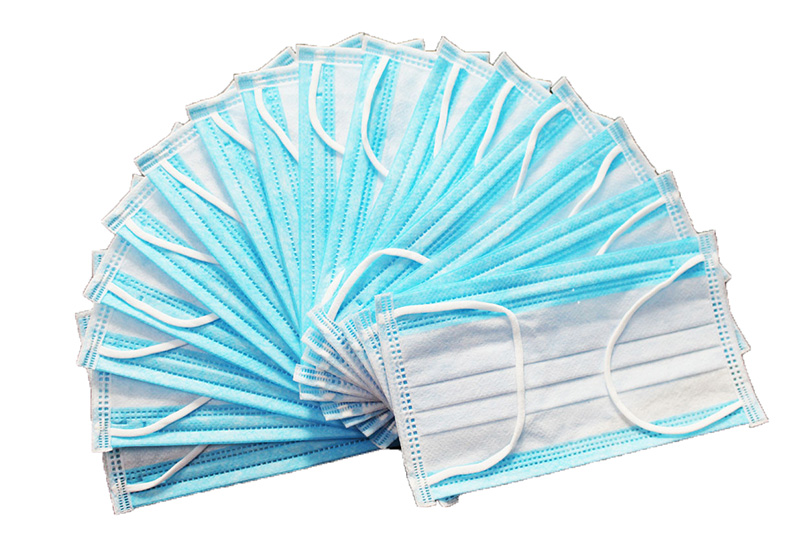

Automatic mask production line, also known as one to three mask production line, composed of a mask body machine and three ear band composed of welding machine. Every minute can output 70 -80 pieces of complete plane mask, mask specifications: 175*(80-100) mm 1-4 layers of non-woven planar filter type mask. Compared with the single independent type mask making machine, joined the automatic conveyor belt and the connecting port, the unique design in addition to improve the production efficiency, reduce artificial cost, is in order to minimize the artificial participation, and reduce the risks of a mask is pollution in the production process.

Machine Features:

1. Ultrasonic melting technique, single man operation.

2. Automatic working from feeding to nose-wire insert, lace sealing, cutting finished products.

3. Machine frame adopts aluminum. Anti-rust, durable, easy cleaning and neat.

Technical parameter

Power Source

220V 50-60HZ

Input Power

8KW

Output Frequency

20KHZ

Working Speed

70-80 Pcs/min

Mask Size

175*(80-100)MM

Non woven Layers

1-4 Layers

Non woven Material

10-20 GSM

Dimension

5000*3000*1800MM

Weight

1100KG
